PTE-A series
Pole mount type long body

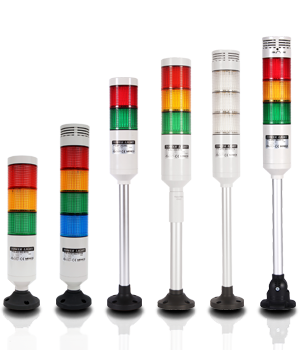

The 56mm tower lamp PTE series is a product that adopts the letest LED technology applying cUL and CE safety standards. With new concept of innovative design, the PTE series is ideal for factory automation installations. LED module assembly method can be variously adjusted and easily configured in installation of various user environment.
Every LED modules can be freely arranged at desired positions vertically.
- UL, CE certfication approval
- Refined design
- LED module configuration and various mounting structure
- Prism cut lens design & High visibility due to LED reflection structure using reflector
- 5 color LED modules
- Buzzer 80dB, 100dB option (Sound adjustable)

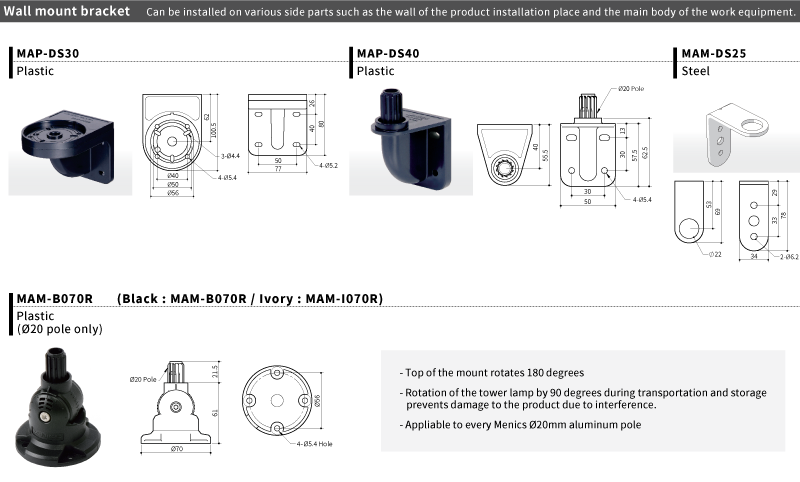

1. Mount
| AP | Aluminum pole + Plastic mount base |
|---|---|
| AM | Aluminum pole + M20 Screw plastic mount |
| AG | Plastic mount base |
| AR | Aluminum pole + Plastic rotary mount base |
| AJ | Aluminum pole - length adjustable type + Plastic mount base |
| AW | Aluminum pole + Plastic wall mount base |
| AD | Aluminum pole + Aluminum mount base |

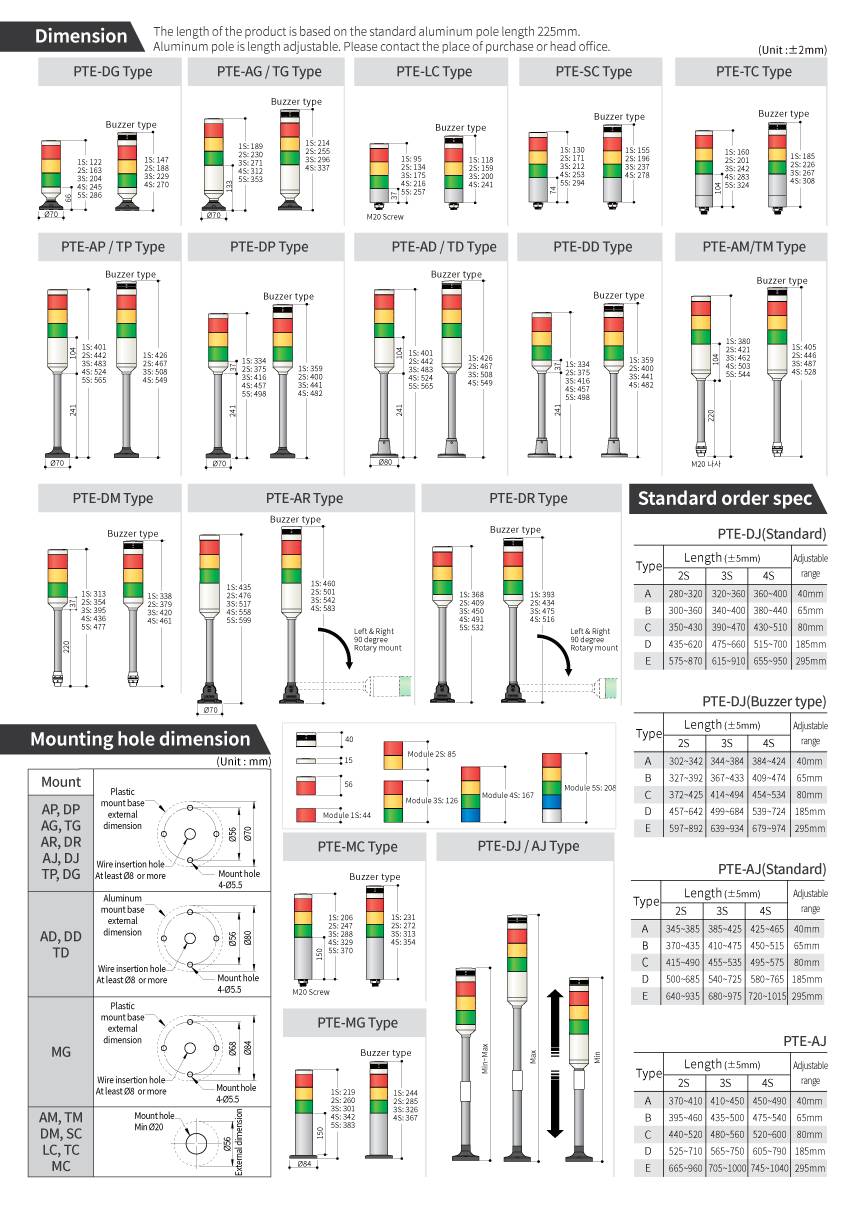

NOTE: Please refer to dimension for detail assembly method.
2. Function
| (No mark) | Steady | ||
|---|---|---|---|
| F | Steady + Flashing | ||
| B | Steady + Buzzer (Full sound) | ||
| V | Steady + Buzzer (Sound adjustable type) | ||
| Z | Steady + Flashing + Buzzer (Full sound) | ||
| X | Steady + Flashing + Buzzer (Sound adjustable type) |
3. Number of stack
| 1 | 1 stack |
|---|---|
| 2 | 2 stack |
| 3 | 3 stack |
| 4 | 4 stack |
| 5 | 5 stack (Buzzer non-adjustable) |
4. Power supply
| 02 | 24VAC/DC |
|---|---|
| FF | 90~240VAC |
5. Lens color (Stacked from top to bottom in the order listed)
| R | Red |
|---|---|
| Y | Yellow |
| G | Green |
| B | Blue |
| C | Clear |
6. Body color (option)
| B | Black |
|---|
7. Buzzer (option)
| (C) | Continuous buzzer | Pi------ | (Standard buzzer sound : Pi-Pi-Pi-) |
|---|---|---|---|
| (H) | Buzzer volume - 100dB type | Sound adjustable type | model: MPZ-56H |
8.Lens color
| W | All lens color - Clear (No matter what you choose from '5.Lens color', every stack lens colors would be produced in clear lens type) |
|---|
Specification
| Function | Steady, Flashing, Buzzer |
|---|---|
| Power supply | 24VAC/DC, 90 ~ 240VAC 50/60Hz |
| Lens color | Red(R), Yellow(Y), Green(G), Blue(B), Clear(C) |
| Buzzer sound | 80±5dB at 1M |
| Flashing rate | 80±10 times per minute |
| Vibration resistance | 10~55Hz(cycle : 1 minute) Multiple amplitude 0.75mm X, Y, Z - 2 hour in each direction |
| Ambient temperature | -15 ~ 40°C |
| Storage temperature | -20 ~ 70°C |
| Ambient humidity | 45 ~ 85% RH |
| Protection | IP65 / IP50 (Buzzer type) |
| Approval | CE , UL, RoHS |
| Cable specification | 1007UL/22AWG |
Current consumption (±10%)
| Standard - 24VAC/DC | 1 stack - 33mA | Standard - 90~240VAC | 1 stack - 17mA |
|---|---|---|---|
| 2 stack - 75mA | 2 stack - 39mA | ||
| 3 stack - 102mA | 3 stack - 56mA | ||
| 4 stack - 144mA | 4 stack - 75mA | ||
| 5 stack - 186mA | 5 stack - 97mA | ||
| Buzzer type - 24VAC/DC | 1 stack - 65mA | Buzzer type - 90~240VAC | 1 stack - 47mA |
| 2 stack - 105mA | 2 stack - 70mA | ||
| 3 stack - 135mA | 3 stack - 90mA | ||
| 4 stack - 180mA | 4 stack - 105mA |
Buzzer module spec. - Option
| Model | MPZ-56H |
|---|---|
| Division | Volume adjustable |
| Volume | 10 ~ 100±5dB at 1M |
| Current consumption( ±10%) | 150mA |
| Weight | App. 33g |
| No. | Data type | Data name | Download |
| 1 | User manual | PTE_PTM_PTD_Manual |  |
| 2 | CAD | 2D CAD file_dxf | |
| 3 | Certification | CE Certification - AC product_pdf | |
| 4 | Certification | CE Certification - DC product_pdf | |
| 5 | Certification | UL Certification_pdf | |
| 6 | CAD | 3Dfile-PTE-AG-3stack_step | |
| 7 | CAD | 3Dfile_PTE-AG-3stack_Buzzertype_step | |
| 8 | CAD | 3Dfile_PTE-AP-3stack_step | |
| 9 | CAD | 3Dfile_PTE-AP 3stack_Buzzertype_step | |
| 10 | Catalog | PTE catalog | |
Ø56mm
PTE series
Ø56mm modular
PTM series
Ø56mm 3 color - 1 stack
PTE-A series
Pole mount tyep long body
PTE-D series
Pole mount & Short body type (24V only)
PTE-M series
Aluminum long body type
PTE-■C series
Body direct mount type
PTD series
Ø56mm LED Dome style
-
